제품 상세 정보:
|

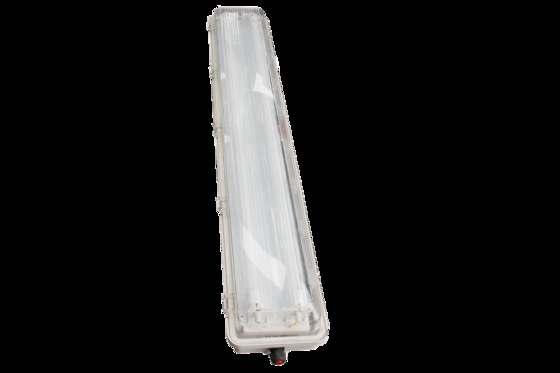

| 강조하다: | 4ft explosion proof LED luminaire,hazardous warehouse LED lighting,explosion proof linear light fixture |
||
|---|---|---|---|
Product Details:
Ex mark:Ex d e IIC T6 Gb/ DIP A21 TA
Intended use:Can be used in zone 1 and zone 2
Can be used in zone 21 and 22
Ambient temperature:-40℃≤Ta≤60℃
Degree of protection:IP66
Rated voltage:220~240V 50/60Hz
Power factor:λ>0.95
Energy efficiency indexEEI=A2
Terminals:L,N,PE,each terminal 2x1.5-10mm2
Cable entry:Moulded plastic 1xM25x1.5 cable gland, outside diameter of cable:Φ8-17mm
Moulded plastic 2xM25x1.5 stopping plugs
| Technical Specification | |
| Input Voltage | 220-240VAC |
| Frequency | 50Hz / 60Hz |
| Anti corrosion grade | WF2 |
| Insulation Grade | IP66 |
| Screw Thread | M25 |
| Cable Diameter | 8mm-17mm |
| Dimension | 300x202x332mm |
| Net Weight | 11.6KGS |
