제품 상세 정보:
|
| Certified: | ATEX CNEX | Material: | Stainless Steel |
|---|---|---|---|
| Enclosure Type: | Flameproof | Service: | OEM Available |
| Voltage: | 220V | Explosion Proof Marking: | Ex d IIC T6 Gb |
| Cable Entry: | M20/M25/M32 | Dimension: | Customized |
| Mounting Type: | Hanging Vertical | Control Functions: | Start/Stop/Forward/Reverse/Speed Control |
| Installation: | Wall-mounted/Floor-standing | Rated Current: | AC110/220/3800/460v |
| Application: | Oil Gas Mine Chemical | Accessories: | Schneider |
| Mounting: | Wall |

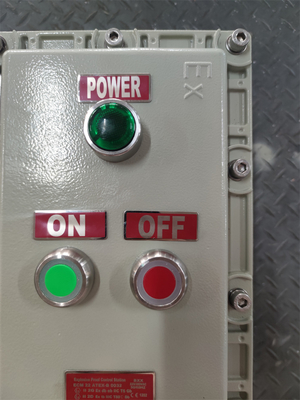

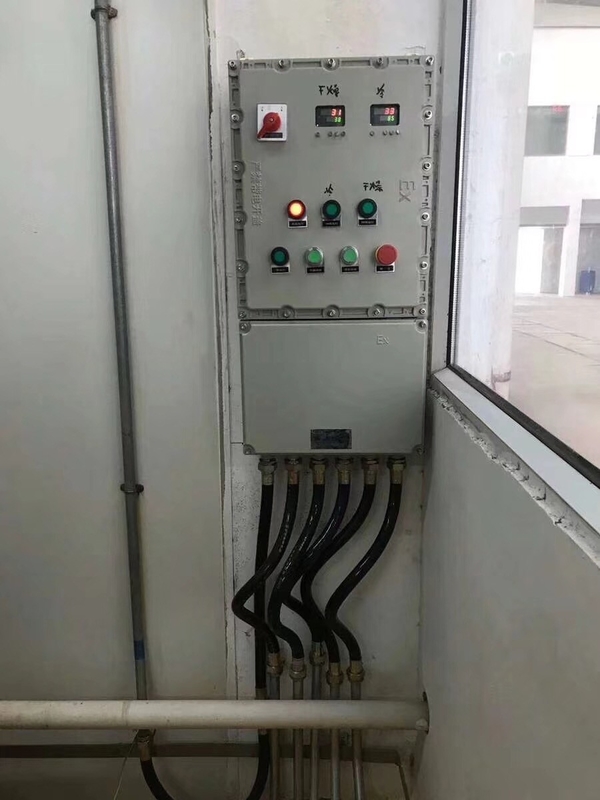

ATEX Explosion Proof Distribution Control Panel For Hazardous Area Can Be Custom
Explosion-proof high bay, with explosion-proof CCC, EU ATEX, TUV, ROHS, ISO CE certification.
Applicable places: Explosive gas environment Zone 1 Zone 2, explosive dust environment Zone 21 Zone 22, such as: chemical plant workshops, warehouses; food workshops, gas stations, refineries, power stations, marine terminals, etc..
Optional lens to adjust the light angle to adapt to different installation sites. Can be ceiling mounted or guardrail mounted.
DETAILED DATASHEET
Explosion protection
| Ex Mark |
Ex d IIC T6 Gb Ex tD A21 IP66 T80℃ |
| For use in | Zone 1, 2 & Zone 21, 22 |
Electrical data
| Rated voltage | 100-305 VAC, 50-60Hz |
| Power factor | >0.98 |
| THD | <20% |
Luminous characteristics
| Power consumption [W] | / | / |
| Colour rendering [CRI] | / | |
| Colour temperature [K] | / | |
| Luminaire efficiency [Lm/W] | / | |
| Beam angle | / | |
Mechanical data
| Degree of protection | IP66 | |
| Cable entry | G 3/4”； NPT3/4” | |
| Weight [kg] | / | / |
| Terminal | ≤2.5 mm² | |
| Mounting Styles | Wall Bracket; Pendant | |
