제품 상세 정보:
|
| 상표: | 크라운 추가 | 제품 이름: | 방폭형 하이베이 조명/GYD620 |
|---|---|---|---|
| 모델: | GYD620 | 전압: | AC 100-277V, 50Hz/60Hz : 24/36VDC |
| 능률: | 135lm/w | 크리: | RA : ≥80 |
| CCT: | 3000/4000/5000/5700K | 인증: | Cnex, Ex, IP66, IEC, IECEX |
| 설치: | 브래킷. 세경, 플랜지 마운트, 벽 마운트 | ||
| 강조하다: | Explosion Proof LED High Bay Light,200W Atex Lamp IP66 Waterproof,Dustproof High Bay Light with Warranty |
||

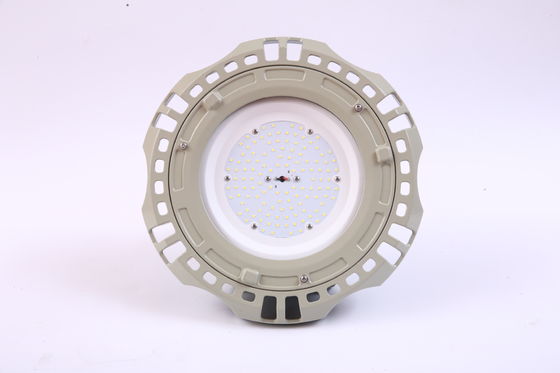

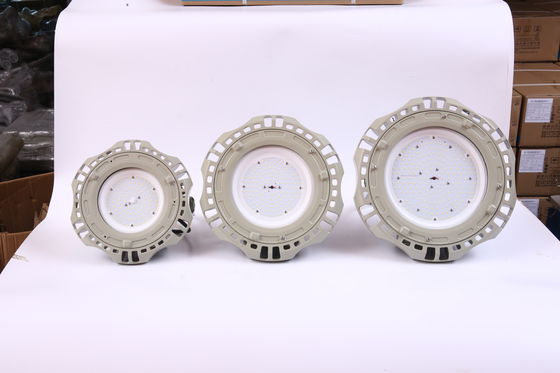

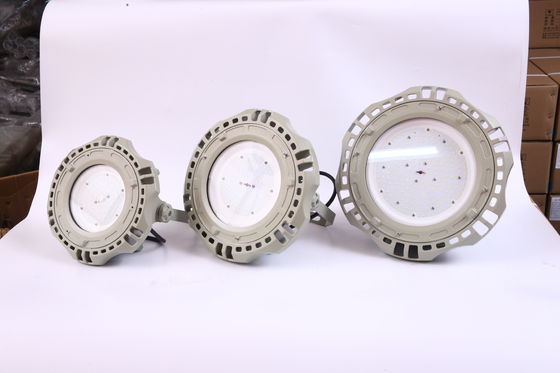

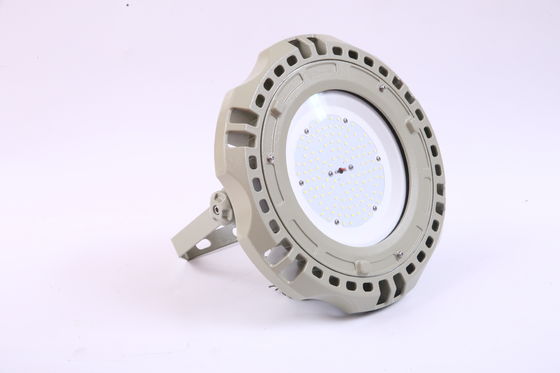

Hot Selling 100W 150W 200W Explosion Proof Atex Lamp Led High Bay Light IP66 waterproof and dustproof
Features:
1. Zone 1&2, Zone 21&22
2. Instant on crisp white light output
3. High efficiency drivers and LEDs provide Low cost operation in harsh andheavyindustrial applications
4. Isolated LED compartment reducestemperature within driver housing
5. Multi choice of beamangle for 60° 90° 120°
Applications
| Typical applications include: |
| Oil and gas industries |
| Chemical, petrochemical |
| Pharmaceutical industries |
| Pulp and Paper |
| Waste and sewage treatment |
| Power Generation |
| Other high humidity, high dust, high temperature, vapor locations |
| Housing: | Die-casting aluminum |
| Exterior: | Stainless steel |
| Globe: | Tempered glass |
| Gasket: | Silicon rubber |
| Certifications |
ATEX
CNEX
CE
RoHS
ISO9001
|
| For use in | Zone 1, 2 & Zone 21, 22 |
| Rated voltage | 100-277VAC, 50-60Hz |
| Power factor | >0.95 |
| THD | <20% |
| Power consumption [W] | 50-100w, 120-150w,150-200w,240w |
| Colour rendering [CRI] | 70 (±2) |
| Colour temperature [K] | 6000-6500 |
| Luminaire efficiency[Lm/W] | 125-130 |
| Beam angle | 120° (45°, 90° is optional) |
| Degree of protection | IP66 |
| Cable entry | G 3/4” |
| Weight [kg] | 5.25,6.85,8.6,10.25 |
| Terminal | ≤2.5 mm² |
| Mounting Styles | Ceiling; Wall Bracket; Pendant |
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.
