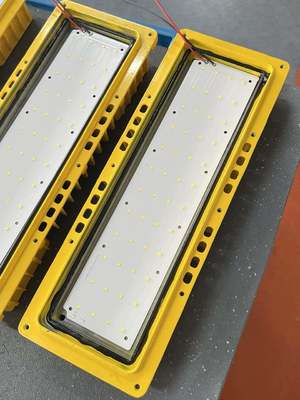

High-Performance Explosion Proof Tunnel Lights for Safe Illumination in Hazardous Areas

Explosion protection
Ex Mark	II 2G Ex d e mb IIC T6
	II 2D Ex tD A21 T80℃
For use in	Zone 1, 2 & Zone 21, 22
Electrical data
Rated voltage	100-240VAC, 50-60Hz
Power factor	＞0.95
THD	＜20%
Luminous characteristics
Power consumption [W]	20~80	100~120	150~200	240~300
Colour rendering [CRI]	80
Colour temperature [K]	6000~6500
Luminaire efficiency [Lm/W]	120~130
Beam angle	120° (60°, 90° optical len is optional)
Mechanical data
Degree of protection	IP66
Cable entry	G 3/4”
Weight [kg]	5	8.9	12.2	15.5
Terminal	≤2.5 mm²
Mounting Styles	Ceiling; Wall Bracket; Pendant

Features:
Environmental-friendly and energy saving,simple shape,easy installation
Constant current output,stable performance
Low power consumption,high light efficiency,good color rendering property
Widely used in factories, warehouses, stadiums and other panoramic lighting.
Zone 1&2, Zone 21&22
Notes:
1.May be dangerous if you do not follow the instructions
2.When external power is connected, corresponding measures must be taken to prevent water and water leakage.
3.The installation of the lamp body must be firm, and the bare wire connection of the power cord must be insulated to prevent accidents.
4.lllegal operations mav damage vour items and mav even endanger vour personal safety
