제품 상세 정보:
|
Application:
1. Typical applications include:
2. Oil and gas industries
3. Chemical, petrochemical
4. Pharmaceutical industries
5. Pulp and Paper
6. Waste and sewage treatment
7. Power Generation
8. Alcohol industry
Features:

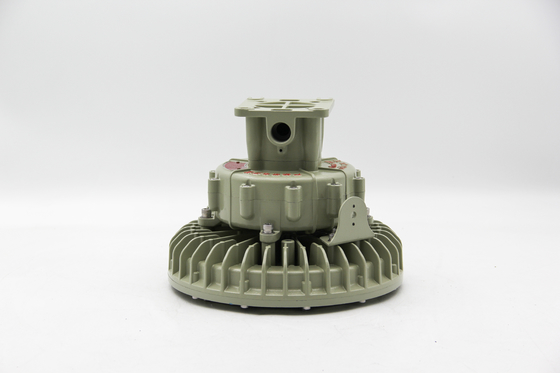

1.Shell made of high strength aluminum alloy casting off surface after blast cleaning by high voltage electrostatic spray.
2.Lamp housing is made of high borosilicate toughened glass with transmittance.It's the antiglare design.
3. With grids to adjust lighting effect and reduce the glare.
4. Modular plug structure design, only need disconnect end cover draw out core to change tubes.
5. For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.
6. Inside the emergency unit designed with over charging and over discharging protection circuit.
Specification:
| Model | GYD680 |
| Output | 30-150w |
| Light effect | 120-135 Lm/w |
| Voltage | AC100-230V 50/60Hz |
| Size | 265x300mm |
| Weight | 9kg |
| Life Hour | 50000 hours |
| Protection level | IP66 |
| Anticorrosion grade | WF2 |
| Explosion proof mark | Ex d IIC T6 Gb; Ex tD A21 IP66 T80° |
| Color Rendering | ≥80Ra |
| Beam Angle | 120° |
